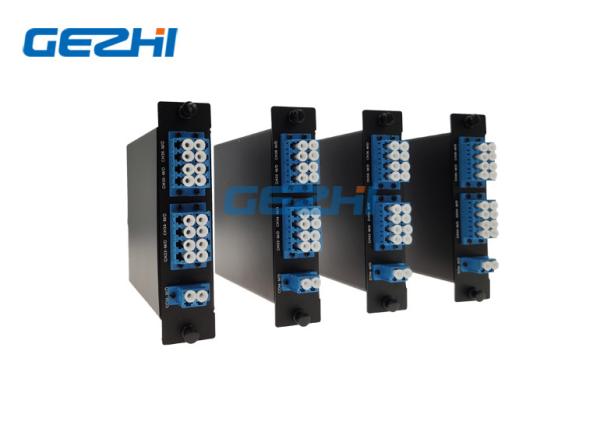

Optical MUX/DEMUX node CWDM 8CH Multiplexor

Brand Name : GEZHI or OEM

Model Number : CWDM8CHMD47LPLGX

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1pcs

Price : Get Latest Price

Payment Terms : T/T, Paypal,Western Union

Supply Ability : 100000Channel per month

Delivery Time : 5-8 work days

Packaging Details : paper box with foam

Product Name : Optical Mux/Demux

Wavelength : 1470~1610nm

Channel : 8CH

Type : Duplex

Connector : LC/UPC

Application : Add/Drop

Contact Now

Optical MUX/DEMUX node CWDM 8CH Multiplexor

GEZHI Optical MUX/DEMUX node CWDM 8CH Multiplexor over a single mode fiber is quite common to extend your overall bandwidth. It offer high stability and reliability, and with LGX cassette. Its operating wavelength is from 1470nm to 1610nm which offer 8 channels with 20nm channel spacing.

Features

Applications
  • Low Insertion Loss
  • High Isolation
  • High Reliability and Stability
  • Low PDL
  • CWDM System
  • Add/Drop
  • PON Networks
  • CATV Link

Specifications

Parameter 4 Channel 8 Channel 18 Channel
Mux Demux Mux Demux Mux Demux
Channel Wavelength (nm) 1270~1610
Center wavelength Accuracy (nm) ±0.5
Channel Spacing (nm) 20
Channel Passband (@-0.5dB bandwidth (nm) >13
Insertion Loss (dB) ≤1.2 ≤2.5 ≤4.2
Channel Uniformity (dB) ≤0.5 ≤1.0 ≤1.5
Channel Ripple (dB) 0.3
Isolation (dB) Adjacent N/A >30 N/A >30 N/A >30
Non-adjacent N/A >40 N/A >40 N/A >40
Inertion Loss Temperature Sensitivity (dB/°C) <0.005
Wavelength Temperature Shifting (nm/°C) <0.002
Polarization Dependent Loss (dB) <0.1
Polarization Mode Dispersion <0.1
Directivity (dB) >50
Return Loss (dB) >45
Maximum Power Handling (mW) 300
Opterating Temperature (°C) -20~+75
Storage Temperature (°C) -40~85
Package dimension (mm) LGX cassette

Above specification are for device without connector.

Ordering Information

CWDM

Configuration Number of Channels 1st Channel Fiber Type Fiber Length In/Out Connector

M=Mux

D=Demux

MD=Mux+Demux

04=4 Channel

08=8 Channel

16=16 Channel

18=18 Channel
N=N Channel

……

27=1270nm
47=1470nm
49=1490nm

……
61=1610nm
SS=special

1=Bare fiber
2=900um
Loose tube
3=2mm Cable
4=3mm Cable		 1=1m
2=2m
S=Specify

0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=LC/APC

6=LC/PC

……
